Steel Conveyor Chain

Steel Conveyor Chain

Steel Conveyor Chain
Steel Conveyor ChainSteel Conveyor Chain
CategoriesMechanical Chain
AlbumView larger image
BrandZMIE chain
materialsteel
FOB portShanghai
Terms of PaymentL/C, T/T
Update Time2018-09-24
Detail Information

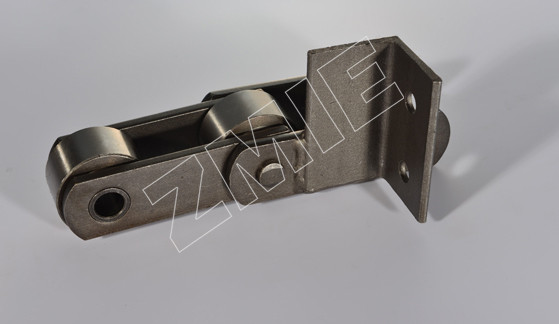

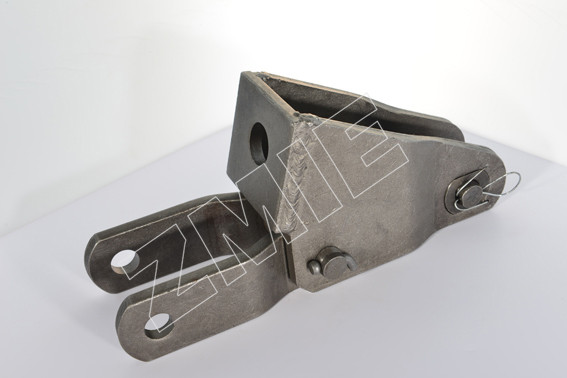

Steel Conveyor Chain

ZMIE

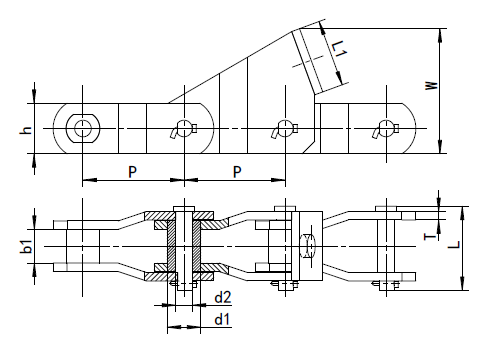

Chain No.
PitchDimensions
PBFH1H2H5Ed1
mmmmmmmmmmmmmmmm
09063152.4 31.4 73.5 88.9 152.4 6.35 75.0 17.5
B5278152.4 35.0 72.9 88.9 152.4 6.35 75.0 12.0





ZMIE
Chain No.
PitchInner
depth
Plate
thickness
Plate
depth
Pin
diameter
Pin lengthBush
diameter
DimensionsUltimate
tensile
strength
Pb1Thd2Ld1L1WQ
mmmmmmmmmmmmmmmmmmKN
5002-FG35153.67 50.8 13.0 64.0 25.27 127.0 50.8 99.00 173.00 400
5025-FG36152.40 50.8 12.7 76.2 25.27 127.0 50.8 101.60 184.40 520
